Well used for Industrial inspection, Face Recognition,Machine Vision,
Video Conference,Industrial Control,AI Recognition,Medical Equipment,
Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.
Product specification book | |

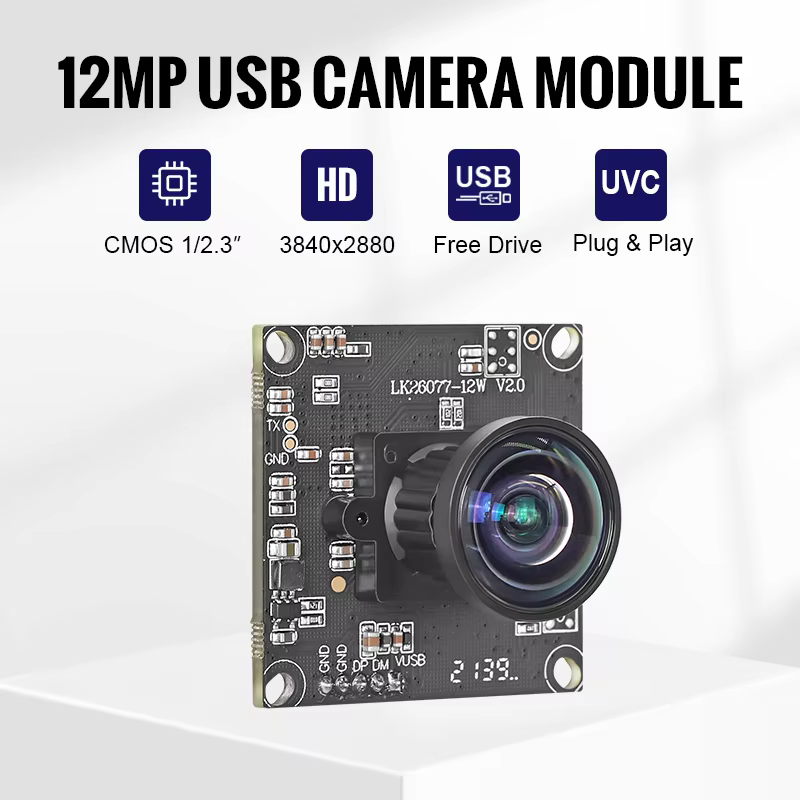

Model |
PCBA_12MP_imx577 |
Sensor |
1/2.3〞（CMOS 1/2.3 inch) |
Pixel Size |
1.55μm x 1.55μm |
Max Resolution |
3840*2880 |
Output Format |
MJPG\YUY2 |
Speed |
20-30fps ( or lock 30fps ); 1080P@120fps optional |
Resolution and Frame Rate |
3840x2880: MJPG@20fps / YUY2@2fps
3840x2160: MJPG@30fps / YUY2@2fps2592x1944: MJPG@30fps / YUY2@3fps
1920x1080: MJPG@30fps / YUY2@5fps 1280x720: MJPG@30fps / YUY2@10fps 640x480: MJPG@30fps / YUY2@30fps |
SNR |
39dB |
Hardware |
Technical grade 12 Megapixel |
Voltage |
5V |
Electricity |
200mA |
Power |
2W |
Mini Illumination |
0.01Lux |
Dynamic Range |
72dB |
Time exposure |
35ms |
Interface |
USB2.0 |
Agreement |
UVC OTG communication protocol |
Storage Temperature |
-20 to 70℃ |
Working Temperature |
-10 to 60℃ |
Focus |
Manual focus |
PCBA size |
38*38mm |
Lens Fov |
optional |
Wave band |
400-650nm （ray of light） |
image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above/linux/Mac OS |
place of origin |
ShenZhen China |
Filter band customization introduction |
||
Band customization |
Band characteristics introduction |
|
High definition |
Visible light, image color, no color (delivery default this effect) |
|
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
|
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
|
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
|
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
|
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
|
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
|
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
|
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
|
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
|
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
|
other bands |
405、520、540、580、730… |
|
Default HD filter, need other bands of filters please contact us |
||
