Well used for Industrial inspection, Face Recognition,Machine Vision,
Video Conference,Industrial Control,AI Recognition,Gesture recognition,
Medical Equipment,Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.
Product specification book |
||
Model |

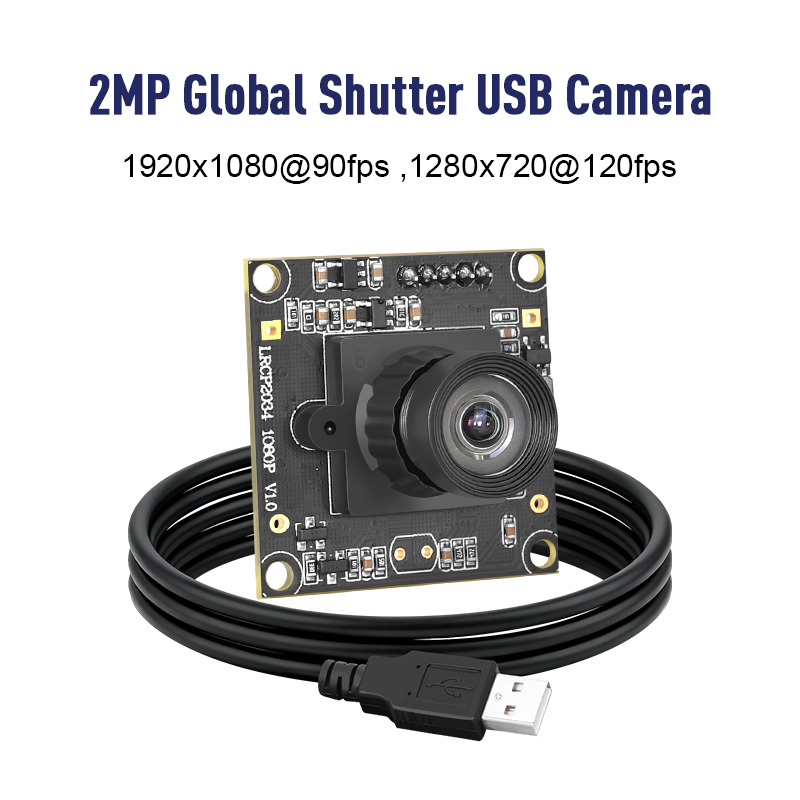

1080P_AR0234 (Global Exposure) |
|
Sensor |
1/2.6〞（CMOS 1/2.6inch) |
|
Pixel Size |
3.0μm x 3.0μm |
|
Speed |
1920*1080@90fps MJPG；1280*720@120fps MJPG |
|
SNR |
38dB |
|
Hardware |
Technical grade 230W pixel |
|
Voltage |
5V |
|
Electricity |
250mA |
|
Power |
2.5W |
|
Max Resolution |
320*240/640*480/800*600/1280*720/1920*1080/1920*1200 |
|
Low-light |
0.01Lux |
|
HDR |
70dB |
|
Time exposure |
10ms |
|
output format |
MJPG\YUY2 (Acquiesce MJPG) |
|
Interface |
USB2.0 Free drive |
|
Agreement |
UVC OTG communication protocol |
|
Temperature |
-20～70℃ |
|

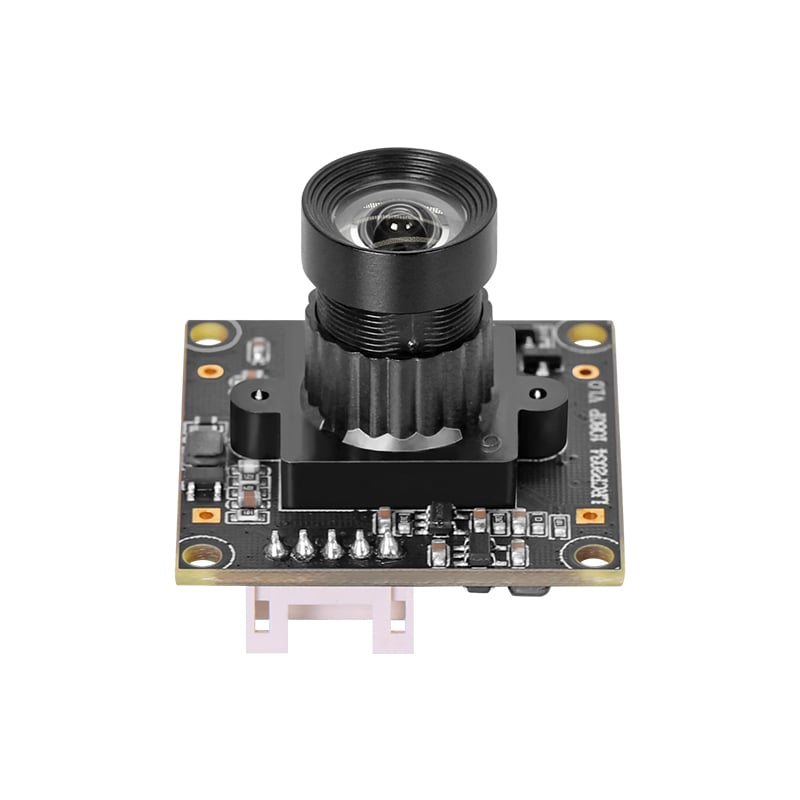

Focus |
Manual focus |
|

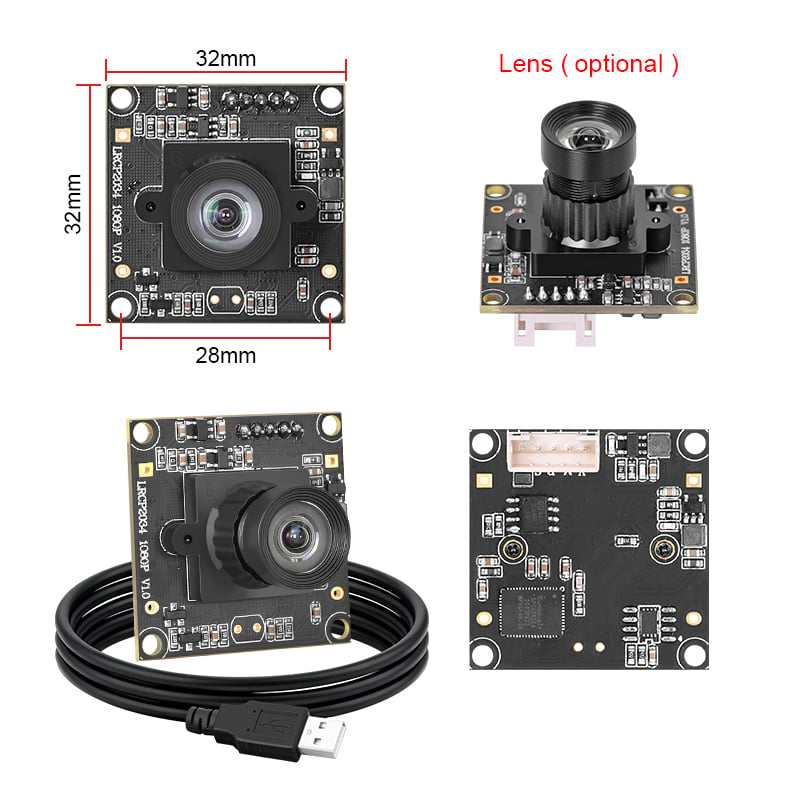

PCBA size |
32*32mm |
|
Lens Fov |
15°30°45°70°90°...150°180°220°choose |
|
Wave band |
400-650nm （ray of light） |
|
image processing |
Automatic exposure / Automatic white balance |
|
System |
XP/Win7/Win8/Win10/Android4.0 /linux/MAC IOS |
|
place of origin |
ShenZhen China |
|
Different resolution speedometers |
||||||||||
320*240 |
640*480 |
1280*720 |
1920*1080 |
1920*1200 |
||||||
MJPG |
120fps |
120fps |
120fps |
90fps |
90fps |
|||||
YUY2 |
30fps |
30fps |
10fps |
5fps |
5fps |
|||||
Filter band customization introduction |
||
Band customization |
Band characteristics introduction |
|
High definition |
Visible light, image color, no color (delivery default this effect) |
|
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
|
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
|
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
|
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
|
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
|
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
|
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
|
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
|
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
|
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
|
other bands |
405、520、540、580、730… |
|
Default HD filter, need other bands of filters please contact us |
||
