* Lens: Optional
* Sensor: 4MP 1/2.8” SC5239S
* Video Compression: H.265(Compatible with H.264)
* Support 2D/3D noise reduction, digital wide dynamic
* Support ONVIF Protocol , Support RTSP, DHCP
* Support various mobile monitoring(iPhone, Audroid)
* Provide web, CMS, center platform management software MYEYE,
provide SDK development
* PoE (Power Over Ethernet) : Support POE power supply
Product specification book | |
Model |
4200_4MP（Network port） |
System structure |
Embedded RTOS design, dual-core 32-bit DSP (GK7205V210), pure hard compression, watchdog |
sensor |
4MP 1/2.8"SC5239S low illumination CMOS sensor; Color [email protected], black and white [email protected] |
Video processing |
H.265+ (compatible with H.265/H.264) encoding, dual stream, AVI format; The stream is adjustable from 0.1M to 8Mpbs. Frame rate is adjustable from 1 to 30 frames per second |
Image output |
Main stream: 2560*1440@18fps,2304*1296@20fps,1920*1080@25fps; Substream: 800*448@25fps |
shutter |
1/50(1/60) second to 1/10,000 second |
Day-night switching mode |
Support IR-CUT,IR-CUT coil internal resistance of 20 Ohm, power duration less than 200ma, voltage 3.5V-6V |
Noise reduction |
Support 2D/3D noise reduction |
Wide dynamic |
Supports digital wide dynamic |
Automatic aperture |
no |
Audio processing |
G.711A codec standard, support two-way voice intercom function, support audio and video synchronization |
Audio interface |
1 input, level 2Vp-p, impedance 1kΩ, support pickup input; 1 output, impedance 16Ω,30mw output power, support to connect headphones or power amplifier |
Network interface |
1 RJ45 Ethernet interface, 10/100M adaptive; Supports network protocols such as RTSP, FTP, DHCP, NTP, and UPnP |
Extension interface |
Support external audio amplifier, white light signal control, universal input and output pins to expand other functions |
Signal interface |
1 photoresistor interface, 1 IR-CUT driver interface, support photoresistor input signal and IR-CUT, infrared lamp linkage |
Head interface |
no |
Motor interface |
no |
Alarm I/O |
no |
WIFI antenna interface |
no |
Reset key interface |
no |
SD card slot |
no |
reliability |
Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65℃ high temperature test stable and reliable (including the whole machine test) |
Intelligent analysis |
Supports humanoid detection and face detection, and supports customization of other intelligent functions |
Business function |
Support WEB configuration, OSD, motion detection; Mobile detection alarm center reminder, screen pop-up linkage; Support MJPEG capture; Support client remote monitoring software, MYEYE platform and other system applications; Provide complete SDK development kit |
ONVIF |
support |
Mobile phone surveillance |
Support mobile monitoring (iOS, Android) |

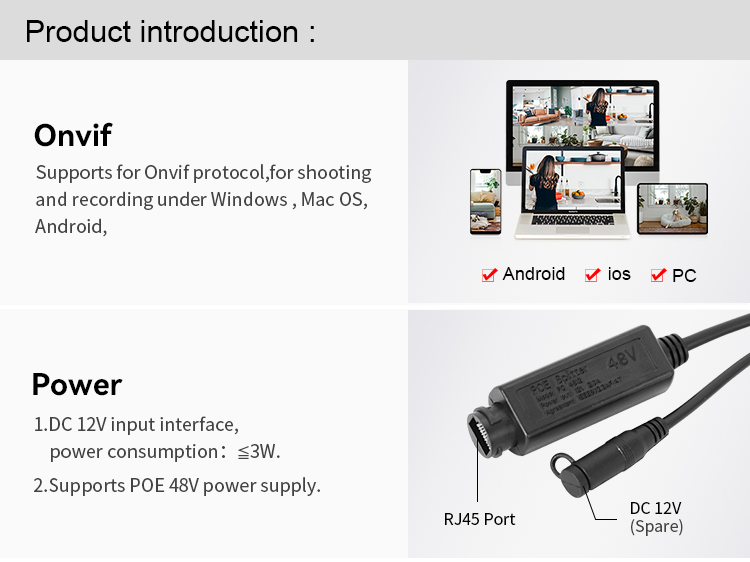

Power source |
Power supply :DC12V/2A, power consumption :≤3W |
Profile size |
Size: 38mm*38mm |
other |
POE power supply is supported, and one-key reset is not supported. The driving voltage of the lamp board is 3.3V |
