Well used for Industrial inspection, Face Recognition,Machine Vision,
Video Conference,Industrial Control,AI Recognition,Medical Equipment,
Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.

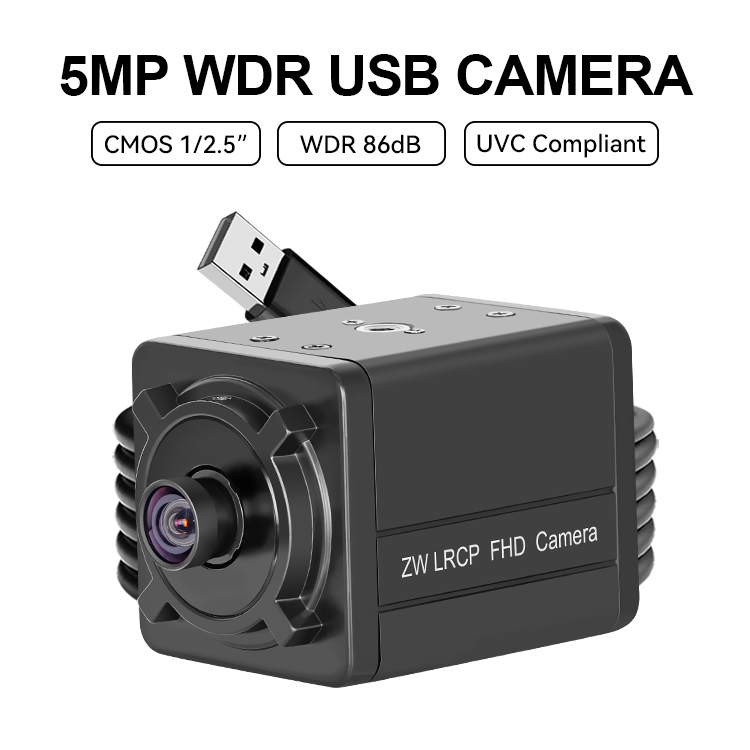

5MP WDR 86dB USB Camera
Product specification book | |
Model |
5600_5MP_PS5520 |
Sensor |
1/2.5〞（CMOS 1/2.5 inch) |
Pixel Size |
1.4μm x 1.4μm |
Output Format |
MJPG\YUY2 |
Resolution & Frame Rate |
2592*1944 MJPG@25fps; YUY2@3fps
1920*1080 MJPG@30fps; YUY2@5fps
1280*720 MJPG@30fps; YUY2@10fps
640*480 MJPG@30fps; YUY2@30fps
|
SNR |
37dB |
Hardware |
Technical grade 500W pixel |
Voltage |
5V |
Electricity |
100mA |
Power |
1W |
Max resolution |
2592*1944 |
Low-light |
0.05Lux |
Dynamic Range |
Up to 86dB |
Time exposure |
35ms |
Interface |
USB2.0 |
Agreement |
UVC OTG communication protocol |
Storage Temperature |
-20℃ to 70℃ |
| Working Temperature | -10℃ to 60℃ |
Focus |
Manual Focus |
Lens Fov |
Optional |
Wave band |
400-650nm （ray of light） |
Image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above/Linux/Mac OS |
place of origin |
ShenZhen China |
Filter band customization introduction | |
Band customization |
Band characteristics introduction |
High definition |
Visible light, image color, no color (delivery default this effect) |
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
other bands |
405、520、540、580、730… |
Default HD filter, need other bands of filters please contact us | |
