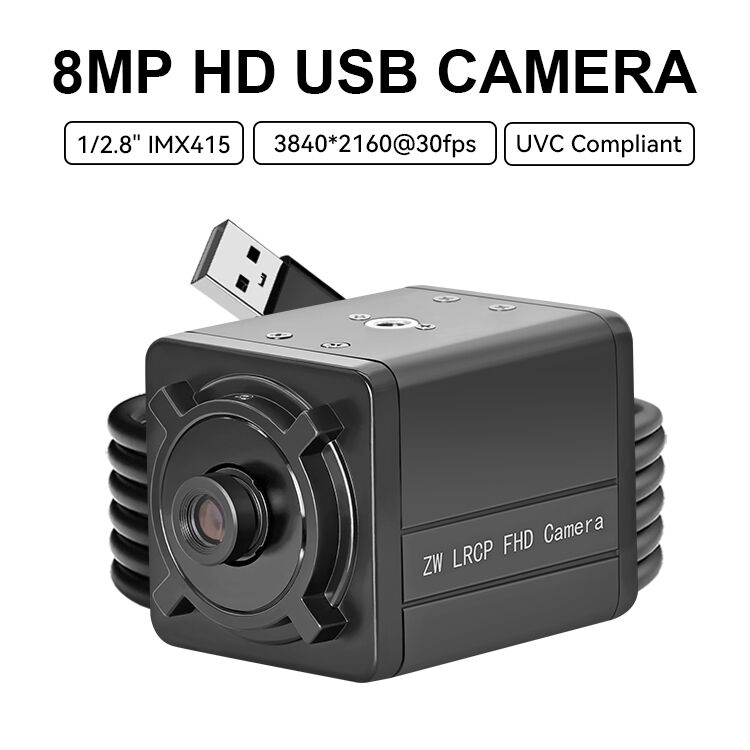

*Lens: Optional
*Sensor: CMOS 1/2.8” sony imx415
*Max Resolution: 3840X2160
*Output Format: YUY2 / MJPEG
*Mini Illumination: 0.01Lux
*Output Interface: High speed USB 2.0 interface
*UVC for use in Windows\Android\Linux\Mac OS
Well used for Industrial inspection, Face Recognition,Machine Vision,Video Conference,
Industrial Control,AI Recognition,Medical Equipment,Scanning Recognition,
ATM,Robot,Auto,Drone.... and so on.
| Product specification book | |
| Model | PCBA_8MP_IMX415 |
| Sensor | CMOS 1/2.8" SONY IMX415 |
| Pixel Size | 1.45μmx1.45μm |
| Hardware | Technical grade 8 Megapixel |
| Max Resolution | 3840(H)X2160(V) |
| Output Format | MJPG/YUY2 |
| Resolution & Frame Rate |
3840X2160 MJPEG@30fps YUY2@2fps 2592X1944 MJPEG@30fps YUY2@3fps 1920X1080 MJPEG@30fps YUY2@5fps 1280x720 MJPG@30fps YUY2@10fps 640X480 MJPEG@30fps YUY2@30fps |
| SNR | 40dB |
| Voltage | 5V |
| Electricity | 230mA |
| Min illumination | 0.01Lux |
| Dynamic Range | 72dB |
| Time Exposure | 35ms |
| Shutter Type | Electronic Rolling Shutter |
| Connecting Port Type | USB2.0 |
| Agreement | UVC OTG Communication Protocol |
| Storage Temperature | -20°C to 70°C |
| Working Temperature | -10°C to 60°C |
| Lens Fov | Optional |
| Wave Band | 400-650nm（ray of light） |
| Image Processing | AWB、AEC、AGC |
| Operating System Request | Win XP/Win7/Win8 / Win10/ Win11 etc. Linux/MAC-OS /Android 4.0 or above |
Filter band customization introduction | |
Band customization |
Band characteristics introduction |
High definition |
Visible light, image color, no color (delivery default this effect) |
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
other bands |
405、520、540、580、730… |
Default HD filter, need other bands of filters please contact us | |
