Well used for Industrial inspection, Face Recognition,Machine Vision,
Video Conference,Industrial Control,AI Recognition,Medical Equipment,
Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.
Product specification book | |
Model |

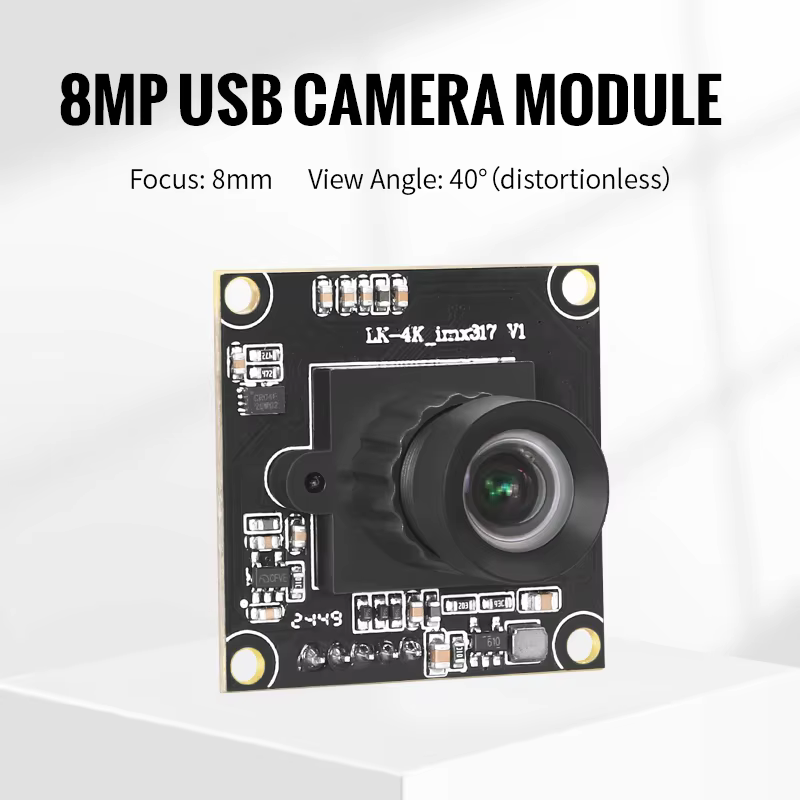

PCBA_8MP_imx317 |

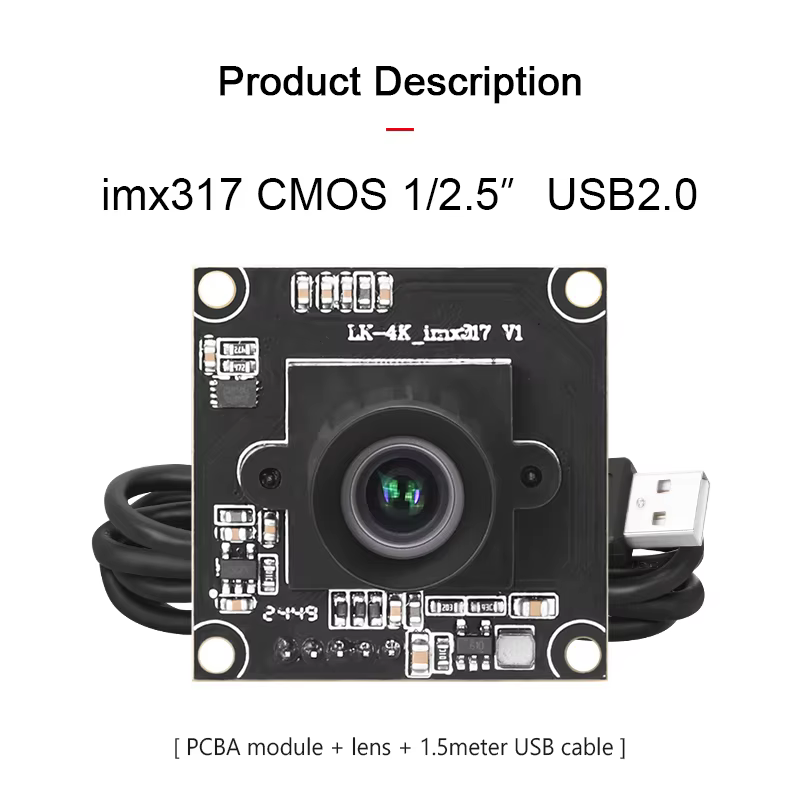

Sensor |
1/2.5〞（CMOS 1/2.5inch) |
Pixel Size |
1.62μm x 1.62μm |
Speed |
20-30fps ( or lock 30fps ) |
SNR |
38dB |
Hardware |
Technical grade 8 Megapixel |
Voltage |
5V |
Electricity |
120mA |
Power |
1.5W |
Max. resolution |
3840*2160 |
Low-light |
0.01Lux |
Dynamic Range |
72dB |
Time Exposure |
35ms |
Output Format |
MJPG\YUY2 |
Interface |
USB2.0 |
Agreement |
UVC OTG communication protocol |
Storage Temperature |
-20°C to 70°C |
Working Temperature |
-10°C to 60°C |
Focus |
Manual Focus |

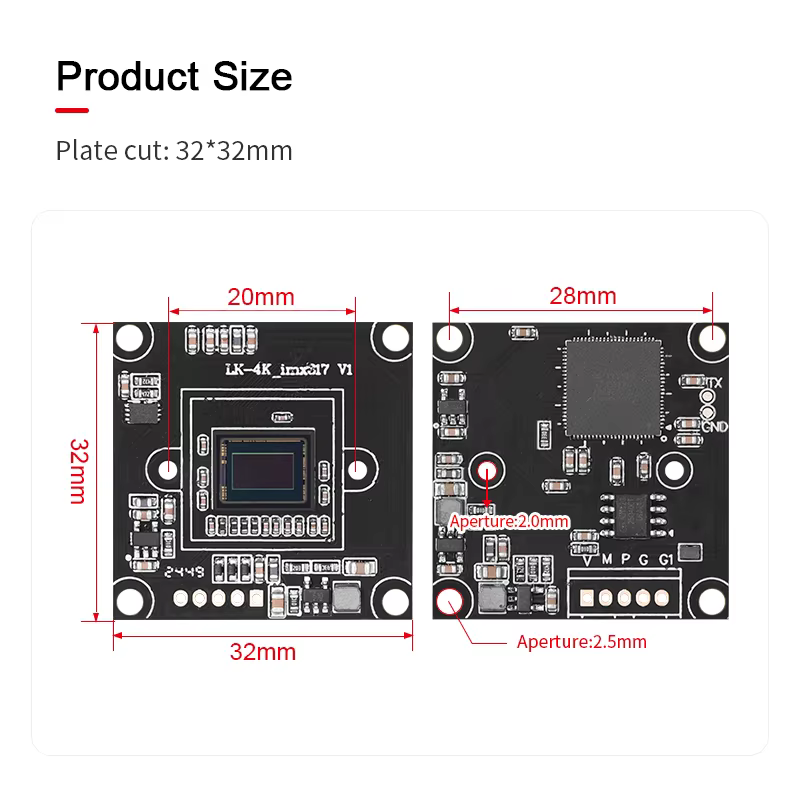

PCBA size |
32*32mm（38*38mm optional） |
Lens Fov |
Optional |
Wave band |
400-650nm （ray of light） |
image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above/linux/Mac OS |
place of origin |
ShenZhen China |
Resolution and Frame Rate |
||||||||||
640*480 |
1280*720 |
1920*1080 |
2592*1944 |
3840*2160 |
||||||
MJPG |
30fps |
30fps |
30fps |
30fps |
30fps |
|||||
YUY2 |
30fps |
10fps |
5fps |
3fps |
2fps |
|||||
Filter band customization introduction |
||
Band customization |
Band characteristics introduction |
|
High definition |
Visible light, image color, no color (delivery default this effect) |
|
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
|
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
|
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
|
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
|
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
|
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
|
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
|
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
|
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
|
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
|
other bands |
405、520、540、580、730… |
|
Default HD filter, need other bands of filters please contact us |
||
