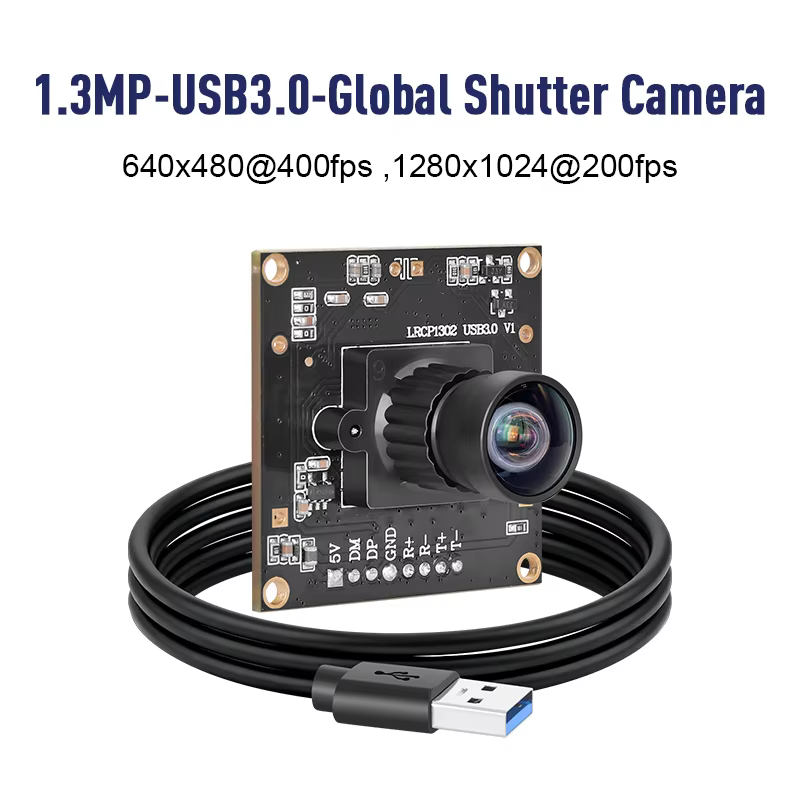

1.3MP 400fps 200fps Global Shutter USB3.0 Camera Module for Conference, Plug & Play on PC/Mac/Linux

1.3MP 400fps 200fps Global Shutter USB3.0 Camera Module for Conference, Plug & Play on PC/Mac/Linux

* Lens: Optional

* Sensor: CMOS 1/2"

* Resolution & Frame Rate：

1280x1024 @200fps MJPEG / @100fps YUY2

640x480 @400fps MJPEG / @400fps YUY2
* Compression Format: YUY2/MJPEG

* Connecting Port Type : High speed USB3.0 interface

Well used for Industrial inspection, Face Recognition,Machine Vision,

Video Conference,Industrial Control,AI Recognition,Gesture recognition,

Medical Equipment,Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.

Introduction

1280*720 MJPEG@120fps; YUY2@10fps

640*400 MJPEG@210fps; YUY2@30fps

320*240 MJPEG@210fps; YUY2@30fps

#detail_decorate_root .magic-0{width: 100%;}#detail_decorate_root .magic-1{overflow:hidden;width: 100%;height: auto;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0;}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width: 100%;height: auto;}#detail_decorate_root .magic-3{overflow:hidden;width: 100%;height: auto;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0;}#detail_decorate_root .magic-4{margin-top:0;margin-left:0;width: 100%;height: auto;}#detail_decorate_root .magic-5{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;font-weight:bold;border-bottom-width: 100%;padding-top:8px;padding-bottom:4px;padding-left:6px;}#detail_decorate_root .magic-6{overflow:hidden;width: 100%;height: auto;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0;}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width: 100%;height: auto;}#detail_decorate_root .magic-8{vertical-align:top;}#detail_decorate_root .magic-9{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px;}#detail_decorate_root .magic-10{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px;}#detail_decorate_root .magic-11{padding:0;margin:0;white-space:pre-wrap;font-size:14px;}#detail_decorate_root .magic-12{font-size:16px;}#detail_decorate_root .magic-13{width: 100%;border-collapse:collapse;}#detail_decorate_root .magic-14{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-15{text-align:center;}#detail_decorate_root .magic-16{font-size:20px;}#detail_decorate_root .magic-17{display:none;}#detail_decorate_root .magic-18{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-19{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-20{text-align:left;}#detail_decorate_root .magic-21{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-22{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-23{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-24{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-25{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-26{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-27{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-28{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-29{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-30{margin-bottom:10px;line-height: auto;}#detail_decorate_root .magic-31{width: 100%;height: auto;overflow:hidden;margin-bottom:0;}#detail_decorate_root .magic-32{position:relative;left:0;top:0;width: 100%;height: auto;}#detail_decorate_root .magic-33{margin-bottom:0;}#detail_decorate_root .magic-34{position:relative;width:100%;}#detail_decorate_root .magic-35{width: 100%;height: auto;overflow:hidden;margin-bottom:0;}#detail_decorate_root .magic-36{position:relative;left:0;top:0;width: 100%;height: auto;}#detail_decorate_root .magic-37{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-38{font-size:22px;}#detail_decorate_root .magic-40{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-41{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-42{font-size:14px;}#detail_decorate_root .magic-43{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-44{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-45{min-height: auto;padding:5px 10px;width: 100%;min-height: auto;box-sizing:content-box;}#detail_decorate_root .magic-46{margin-bottom:10px;overflow:hidden;}#detail_decorate_root .magic-47{width: 100%;height: auto;overflow:hidden;margin-bottom:0;}#detail_decorate_root .magic-48{position:relative;left:0;top:0;width: 100%;height: auto;}#detail_decorate_root .magic-49{width: 100%;height: auto;overflow:hidden;margin-bottom:0;}#detail_decorate_root .magic-50{position:relative;left:4px;top:-47px;width: 100%;height: auto;}#detail_decorate_root .magic-51{width: 100%;height: auto;overflow:hidden;margin-bottom:0;}#detail_decorate_root .magic-52{position:relative;left:0;top:0;width: 100%;height: auto;}#detail_decorate_root .magic-53{width: 100%;height: auto;overflow:hidden;margin-bottom:0;}#detail_decorate_root .magic-54{position:relative;left:-1px;top:20px;width: 100%;height: auto;}#detail_decorate_root .magic-55{overflow:hidden;width: 100%;height: auto;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0;}#detail_decorate_root .magic-56{margin-top:0;margin-left:0;width: 100%;height: auto;}#detail_decorate_root .magic-57{overflow:hidden;width: 100%;height: auto;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0;}#detail_decorate_root .magic-58{margin-top:0;margin-left:0;width: 100%;height: auto;}#detail_decorate_root .magic-59{overflow:hidden;width: 100%;height: auto;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0;}#detail_decorate_root .magic-60{margin-top:0;margin-left:0;width: 100%;height: auto;}#detail_decorate_root .magic-61{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap;} .flex-layout-h { flex: 1 0 auto; display: flex; flex-direction: row; justify-content: space-between; } .flex-layout-v { flex: 1; display: flex; flex-direction: column; } .J_module { margin-bottom: 10px; }

Product specification book
Model	1.3MP_USB3.0_JK-S02（Color Global Shutter）
Sensor	1/2〞（CMOS 1/2 inch)
Max Resolution	1280*1024
Pixel Size	4.8μm x 4.8μm
Output Format	MJPG\YUY2
Speed	MJPG：400fps ( or 200fps ) ; YUY2：30-400fps
Resolution & Frame Rate	12801054 MJPEG@200fps; YUY2@100fps 1280960 MJPEG@200fps; YUY2@100fps 1280720 MJPEG@200fps; YUY2@100fps 640512 MJPEG@400fps; YUY2@400fps 640400 MJPEG@400fps; YUY2@400fps 320240 MJPEG@400fps; YUY2@400fps
SNR	41dB
Hardware	Technical grade 1.3 Megapixel
Voltage	5V
Electricity	80mA
Power	1W
Mini Illumination	0.01Lux
Dynamic Range	77dB
Time exposure	3ms（400fps）
Interface	USB3.0
Agreement	UVC OTG communication protocol
Storage Temperature	-20℃ to 70℃
Working Temperature	-10℃ to 60℃
Focus	Manual Focus

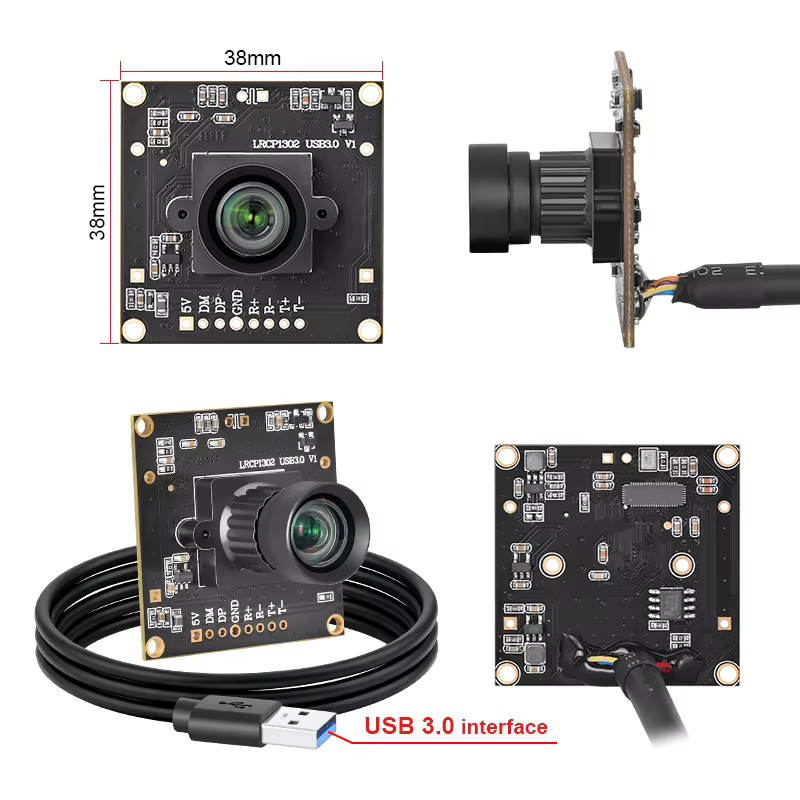

PCBA size	38*38mm
Lens Fov	Optional
Wave band	400-650nm （ray of light）
image processing	Automatic exposure / Automatic white balance
System	XP/Win7/Win8/Win10/Android4.0 or above /Linux/Mac OS
place of origin	ShenZhen China

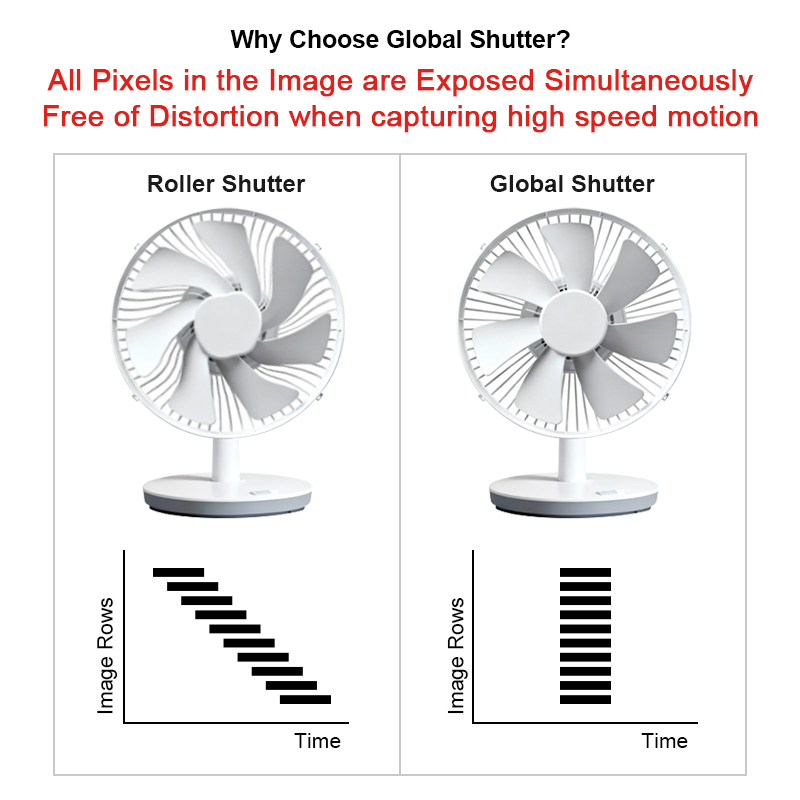

*Global shutter camera: All image pixels are synchronously exposed, eliminating distortion or
blurring, enabling the capture of sharp images even in high-speed motion scenarios.

Filter band customization introduction
Band customization	Band characteristics introduction
High definition	Visible light, image color, no color (delivery default this effect)
Infrared 850nm	Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased
Infrared 940nm	Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased
Narrow band 850nm	Wavelength 820-880nm, image will be biased (more black)
Narrow band 940nm	Wavelength 910-970nm, image will be dark (close to black and white)
Narrow band 980nm	Wavelength 960-1000nm, image will be biased (darker, black and white)
Narrow band 1064nm	Wavelength 1040-1080nm, image darker (darker, more black and white)
Narrow band 1310nm	Wavelength 1280-1335nm, image darker (darker, more black and white)
Narrow band 1450nm	Wavelength 1420-1480nm, image darker (darker, more black and white)
Narrow band 1550nm	Wavelength 1520-1580nm, image darker (darker, more black and white)
Near infrared 700-1100nm	Wavelength 700-1100nm, image will be skewed (Partial red)
other bands	405、520、540、580、730…
Default HD filter, need other bands of filters please contact us
