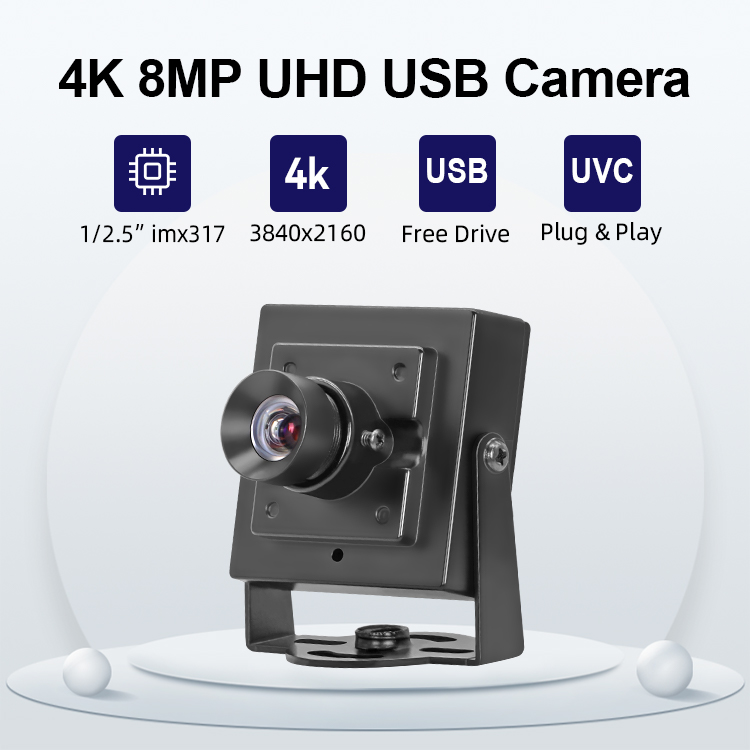

* Lens: Optional
* Sensor: CMOS 1/2.5”
* Output Format: MJPEG/YUY2
* Max. Resolution: 3840*2160
* Output Interface: USB2.0
* Customized support: OEM, ODM
Well used for Industrial inspection, Face Recognition,Machine Vision,
Industrial Control,AI Recognition,Medical Equipment,Scanning Recognition,
Video Conference, ATM,Robot,Auto,Drone.... and so on.
Product specification book | |
Model |
3200_8MP_imx317 |
Sensor |
1/2.5〞（CMOS 1/2.5inch) |
Pixel Size |
1.62μm x 1.62μm |
Output Format |
MJPG\YUY2 |
Resolution & Frame Rate |
3840x2160 MJPG@30fps; YUY2@2fps
2592x1944 MJPG@30fps; YUY2@3fps
1920x1080 MJPG@30fps; YUY2@5fps
1280x720 MJPG@30fps; YUY2@10fps
640x480 MJPG@30fps; YUY2@30fps
|
SNR |
38dB |
Hardware |
Technical grade 8 Megapixel |
Voltage |
5V |
Electricity |
120mA |
Power |
1.5W |
Max resolution |
3840*2160 |
Low-light |
0.01Lux |
HDR |
72dB |
Time exposure |
35ms |
Interface |
USB2.0 |
Agreement |
UVC OTG communication protocol |
Temperature |
-20～70℃ |
Focus |
Manual focus |
PCBA size |
32*32mm |
Lens Fov |
15°30°45°70°90°...150°180°220°choose |
Wave band |
400-650nm （ray of light） |
image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 /linux/MAC IOS |
place of origin |
ShenZhen China |
Filter band customization introduction | |
Band customization |
Band characteristics introduction |
High definition |
Visible light, image color, no color (delivery default this effect) |
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
other bands |
405、520、540、580、730… |
Default HD filter, need other bands of filters please contact us | |
