Well used for Industrial inspection, Face Recognition,Machine Vision,
Video Conference,Industrial Control,AI Recognition,Medical Equipment,
Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.
Product specification book |
||

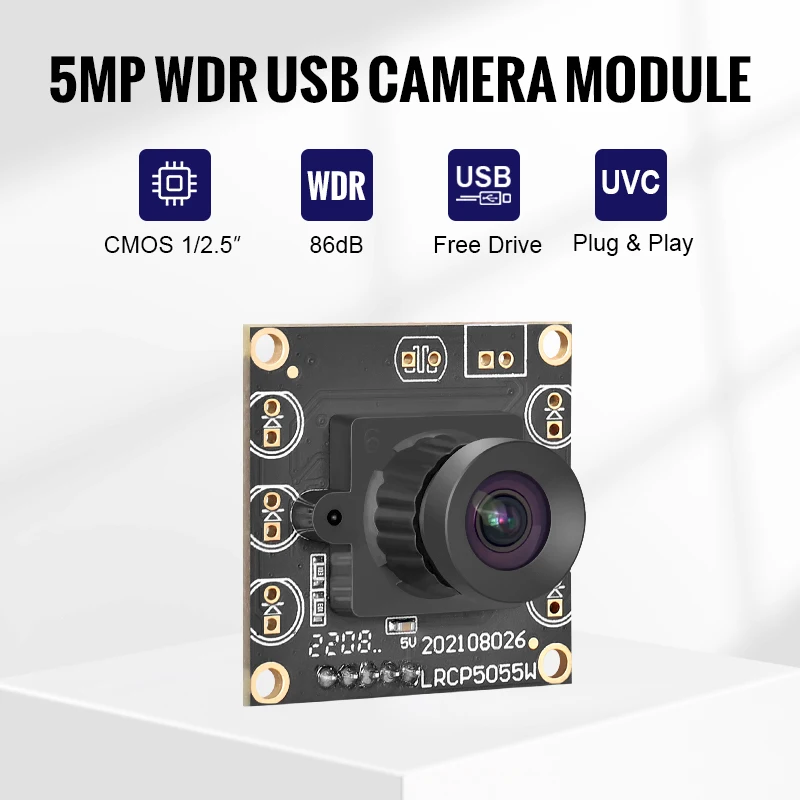

Model |
PCBA_5MP_PS5520 |
|
Sensor |
1/2.5〞（CMOS 1/2.5 inch) |
|
Pixel Size |
1.4μm x 1.4μm |
|
Speed |
20-30fps ( or lock 30fps ) |
|
SNR |
37dB |
|
Hardware |
Technical grade 5 Megapixel |
|
Voltage |
5V |
|
Electricity |
100mA |
|
Power |
1W |
|
Max resolution |
2592*1944 |
|
Low-light |
0.05Lux |
|
Dynamic Range |
Up to 86dB |
|
Time exposure |
35ms |
|
output format |
MJPG\YUY2 |
|
Output Interface |
USB2.0 |
|
Agreement |
UVC OTG communication protocol |
|
Temperature |
-20～70℃ |
|
Focus |
Manual Focus |
|

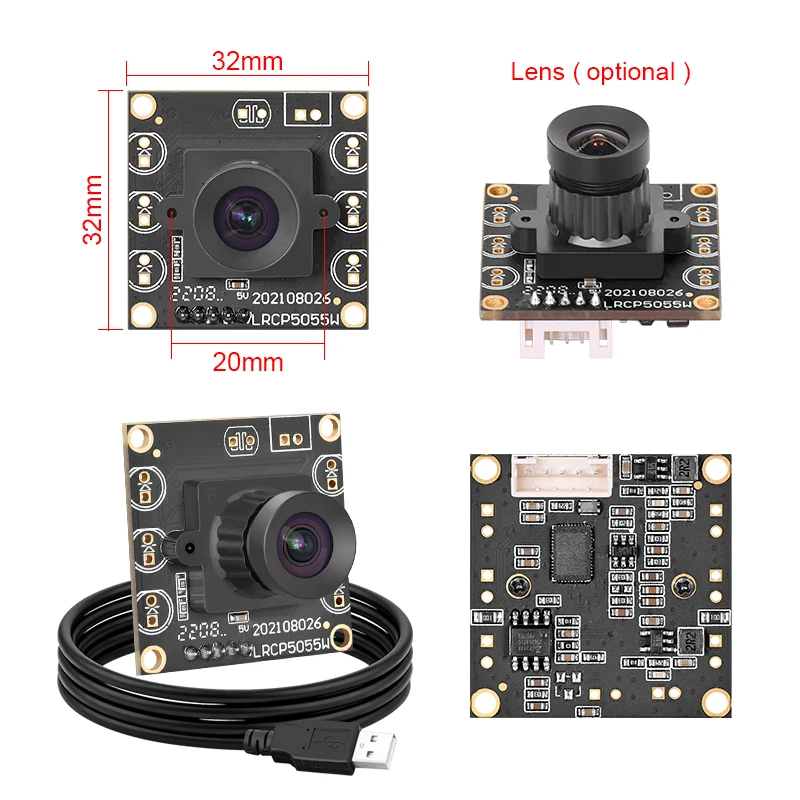

PCBA size |
32*32mm （38x38mm optional ） |
|
Lens Fov |
15°30°45°70°90°...150°180°choose |
|
Wave band |
400-650nm （ray of light） |
|
Image processing |
Automatic exposure / Automatic white balance |
|
System |
XP/Win7/Win8/Win10/Android4.0 /linux/MAC IOS |
|
place of origin |
ShenZhen China |
|
Resolution and Frame Rate |
||||||||
640*480 |
1280*720 |
1920*1080 |
2592*1944 |
|||||
MJPG |
30fps |
30fps |
30fps |
25fps |
||||
YUY2 |
30fps |
10fps |
5fps |
3fps |
||||
Filter band customization introduction |
||
Band customization |
Band characteristics introduction |
|
High definition |
Visible light, image color, no color (delivery default this effect) |
|
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
|
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
|
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
|
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
|
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
|
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
|
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
|
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
|
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
|
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
|
other bands |
405、520、540、580、730… |
|
Default HD filter, need other bands of filters please contact us |
||
