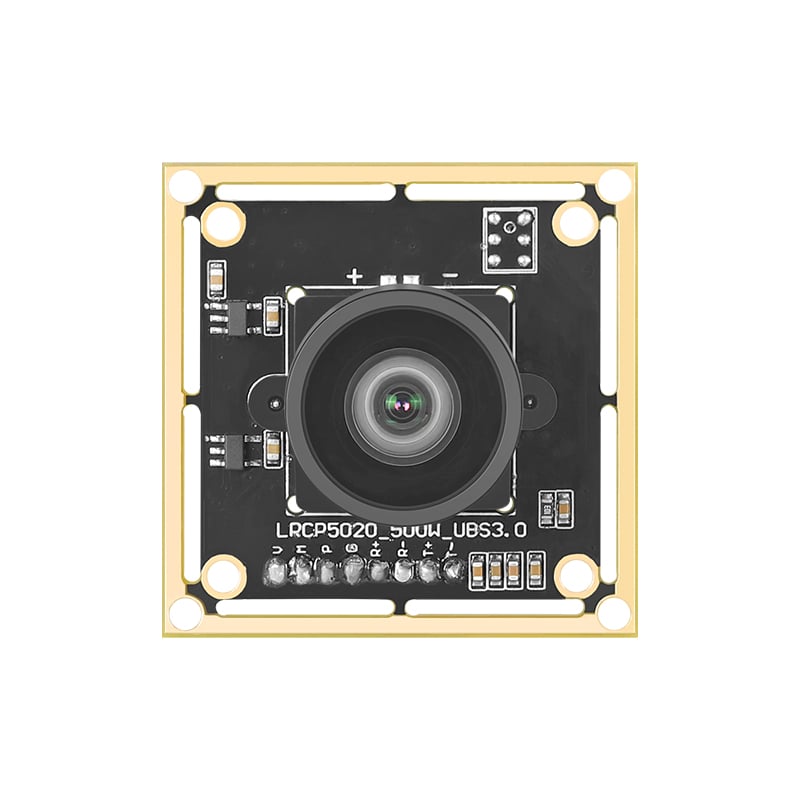

* Lens: Optional
* Sensor:CMOS 1/2.8” IMX335
* Output Format:MJPEG/YUY2
* Max. Resolution: 2592*1944@25fps
* High Frame Rate: MJPEG /YUY2 1080P@60fps
* Output Interface: High Speed USB3.0 interface
* Module size: 38*38mm
* Customized support: OEM, ODM
Well used for Industrial inspection, Face Recognition,Machine Vision,
Video Conference,Industrial Control,AI Recognition,Medical Equipment,
Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.
Product specification book | |
Model |
PCBA_5MP_imx335 （USB3.0） |
Sensor |
1/2.8〞（CMOS 1/2.8inch) |
Pixel Size |
2.0μm x 2.0μm |
Speed |
60fps ( or 30fps ) |
SNR |
39dB |
Hardware |
Technical grade 5 Megapixel |
Voltage |
5V |
Electricity |
100mA |
Power |
1W |
Max resolution |
2592*1944 |
Mini Illumination |
0.01Lux |
Dynamic Range |
72dB |
Time Exposure |
20ms |
Output Format |
MJPG\YUY2 |
Interface |
High speed USB3.0 interface |
Agreement |
UVC OTG communication protocol |
Storage Temperature |
-20℃ to 70℃ |
Working Temperature |
-10℃ to 60℃ |
Focus |
Manual Focus |
PCBA size |
38*38mm |
Lens Fov |
Optional |
Wave band |
400-650nm （ray of light） |
image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above/linux/Mac OS |
place of origin |
ShenZhen China |
Resolution and Frame Rate |
||||||||||
640*480 |
1280*720 |
1920*1080 |
2048*1536 |
2592*1944 |
||||||
MJPG |
60fps |
60fps |
60fps |
25fps |
25fps |
|||||
YUY2 |
60fps |
60fps |
60fps |
25fps |
25fps |
|||||
Filter band customization introduction |
||
Band customization |
Band characteristics introduction |
|
High definition |
Visible light, image color, no color (delivery default this effect) |
|
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
|
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
|
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
|
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
|
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
|
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
|
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
|
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
|
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
|
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
|
other bands |
405、520、540、580、730… |
|
Default HD filter, need other bands of filters please contact us |
||
