* Customized Support: OEM, ODM
Well used for Industrial inspection, Face Recognition,Machine Vision,
Video Conference,Industrial Control,AI Recognition,Medical Equipment,
Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.
Product specification book | |
Model |

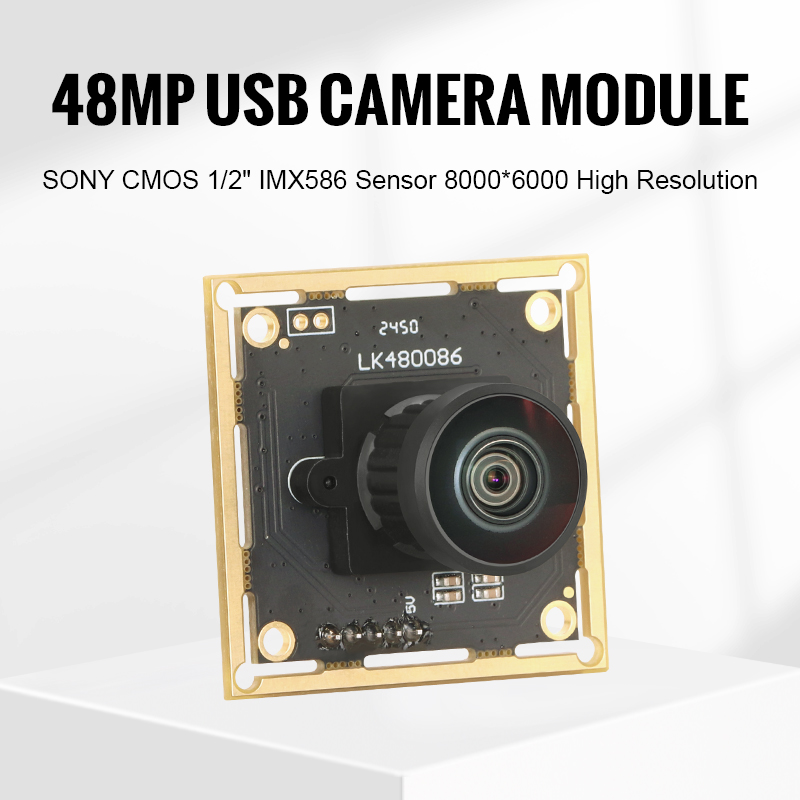

48MP_imx586 |
Sensor |
1/2〞（CMOS 1/2inch) |
Pixel Size |
0.8μm x 0.8μm |
Max Resolution |

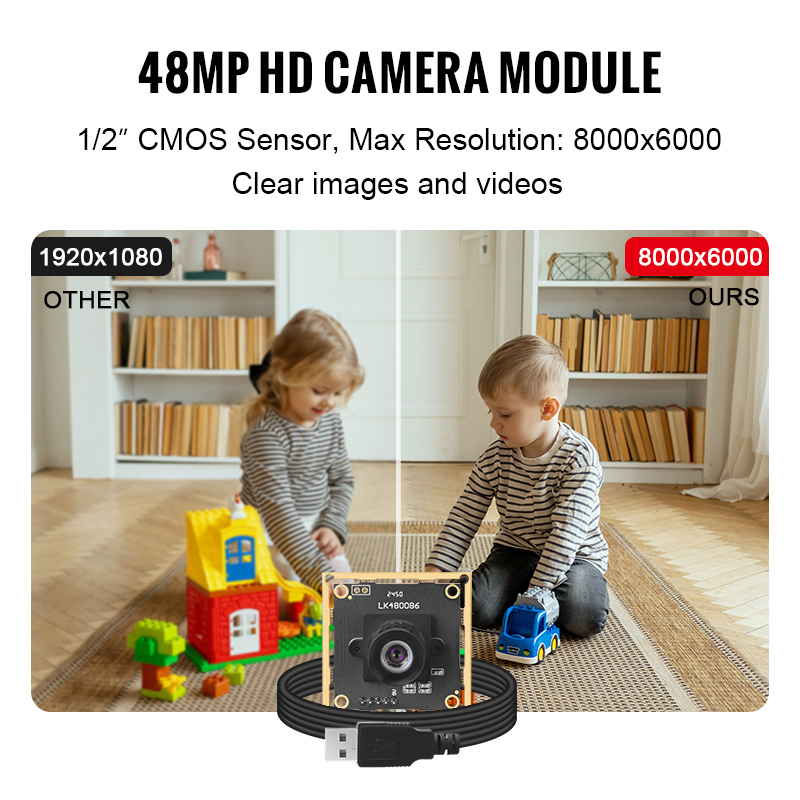

8000*6000 |
Speed |
20-30fps ( or lock 30fps ) |
SNR |
37dB |
Hardware |
Technical grade 48 Megapixel |
Voltage |
5V |
Electricity |
300mA |
Power |
3W |
| Mini Illumination | 0.05Lux |
| Dynamic Range | 76dB |
Time exposure |
35-200ms |
output format |
MJPG\YUY2 |
Interface |
USB2.0 |
Agreement |
UVC OTG communication protocol |
Storage Temperature |
-20°C to 70°C |
Working Temperature |
-10°C to 60°C |
Focus |
Manual Focus |
PCBA size |

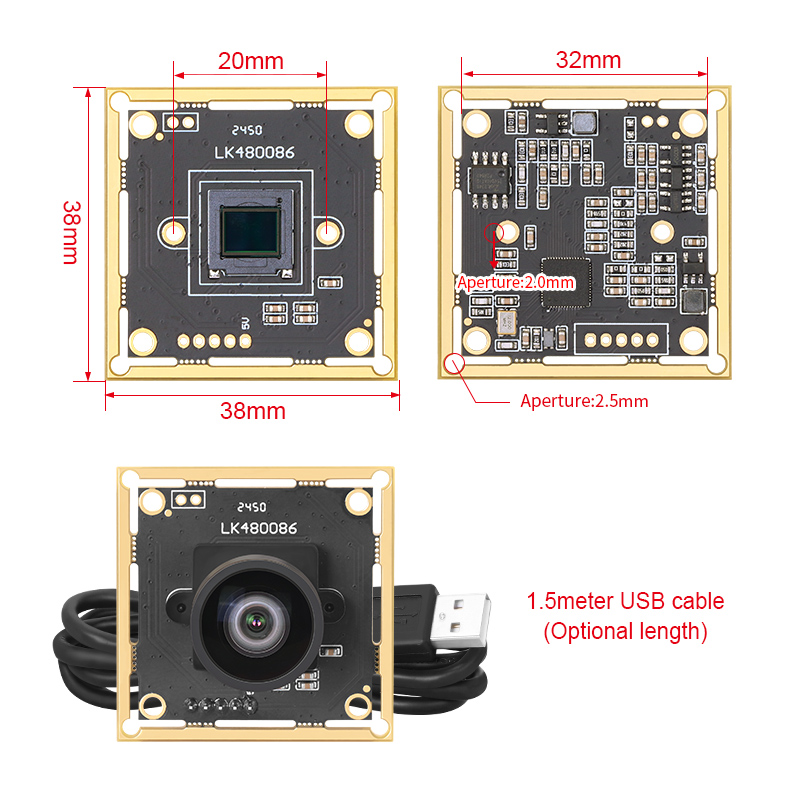

38*38mm |
Lens Fov |
15°30°45°70°90°...150°180°220°choose |
Wave band |
400-650nm （ray of light） |
image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above /linux/Mac OS |
place of origin |
ShenZhen China |
Different resolution speedometers | ||||||
1920*1080 |
2592*1944 |
3840*2160 |
4000*3000 |
5000*3750 |
8000*6000 |
|
MJPG |
30fps |
30fps |
30fps |
20fps |
5fps |
5fps |
YUY2 |
5fps |
|||||
Filter band customization introduction | |
Band customization |
Band characteristics introduction |
High definition |
Visible light, image color, no color (delivery default this effect) |
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
other bands |
405、520、540、580、730… |
Default HD filter, need other bands of filters please contact us | |
