Well used for High-speed mobile capture, Industrial inspection, Face Recognition,
Machine Vision,Video Conference,Industrial Control,AI Recognition,Gesture recognition,
Medical Equipment,Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.
Product specification book | |

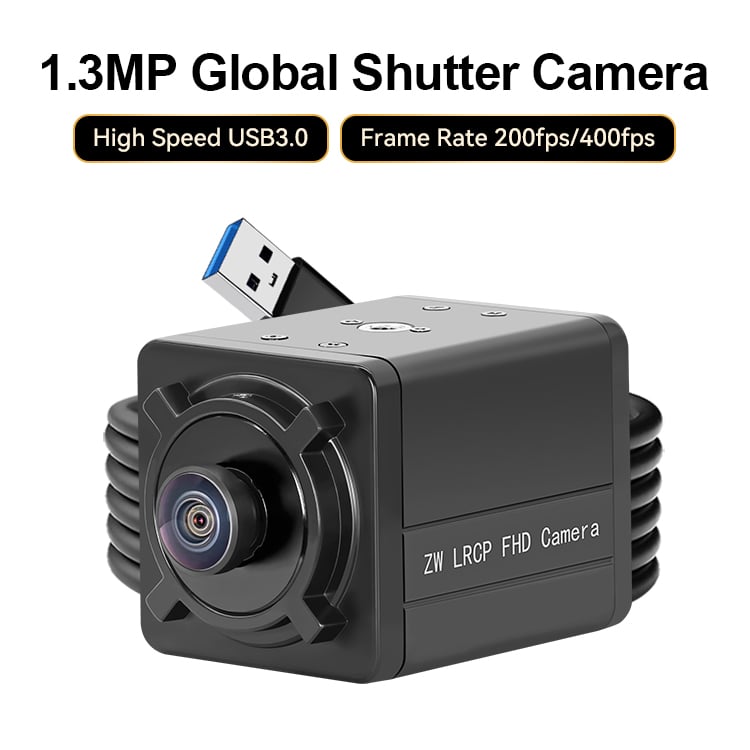

Model |
1.3MP_USB3.0_Color Global Shutter |
Sensor |
1/2〞（CMOS 1/2 inch) |
Pixel Size |
4.8μm x 4.8μm |
Max Resolution |
1280*1024 |
Speed |
MJPG：400fps ( or 200fps ) ; YUY2：30-400fps |
Resolution & Frame Rate |
1280x1024: MJPG@200fps / YUY2@100fps 1280x960: MJPG@200fps / YUY2@100fps 1280x720: MJPG@200fps / YUY2@100fps 640X512: MJPEG@400fps / YUY2@400fps 640X480: MJPEG@400fps / YUY2@400fps 320X240: MJPEG@400fps / YUY2@400fps |
SNR |
41dB |
Hardware |
Technical grade 1.3 Megapixel |
Voltage |
5V |
Electricity |
80mA |
Power |
1W |
| Mini Illumination | 0.01Lux |
| Dynamic Range | 77dB |
Time exposure |
3ms（400fps） |
Output format |
MJPG\YUY2 |
Interface |
USB3.0 |
Agreement |
UVC OTG communication protocol |
Storage Temperature |
-20℃ to 70℃ |
Working Temperature |
-10℃ to 60℃ |
Focus |
Manual Focus |
Lens Fov |
15°30°45°70°90°...150°180°220°choose |
Wave band |
400-650nm （ray of light） |
image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above /Linux/Mac OS |
place of origin |
ShenZhen China |
Filter band customization introduction | |
Band customization |
Band characteristics introduction |
High definition |
Visible light, image color, no color (delivery default this effect) |
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
other bands |
405、520、540、580、730… |
Default HD filter, need other bands of filters please contact us | |
