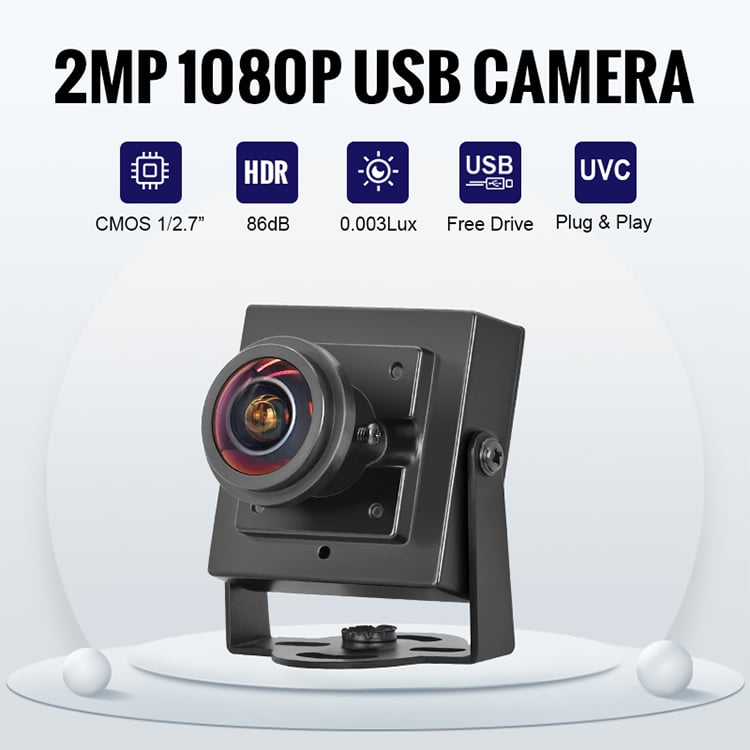

* Lens: Optional
* Sensor: CMOS 1/2.7”
* Max. Resolution:1920*1080
* Output Format: MJPEG/YUY2

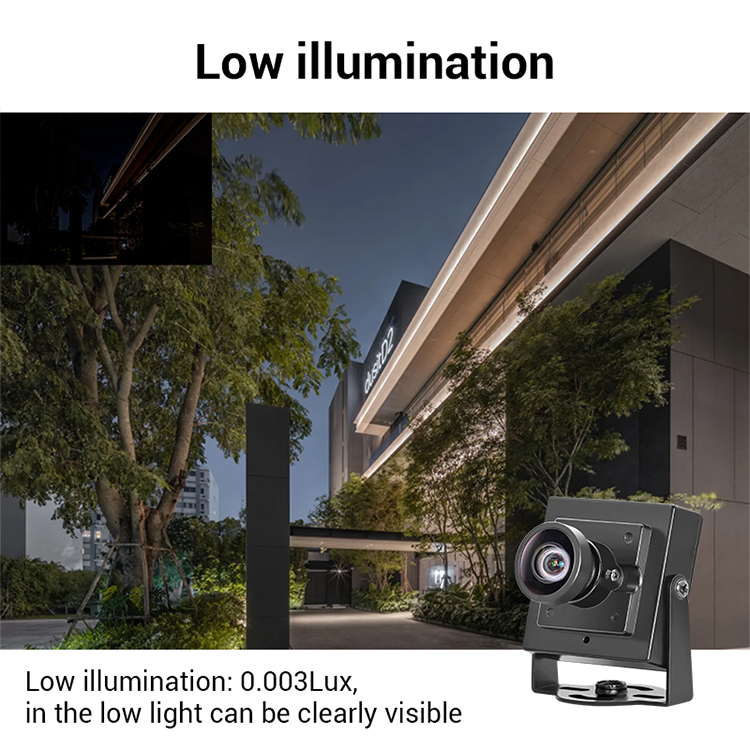

* Mini Illumination: 0.003Lux
* Dynamic Range: 86dB
* Output Interface: USB2.0
* Customized support: OEM, ODM
Well used for Industrial inspection, Face Recognition,Machine Vision,
Industrial Control,AI Recognition,Medical Equipment,Scanning Recognition,
Video Conference, ATM,Robot,Auto,Drone.... and so on.
Product specification book | |
Model |
3200_1080P_PS5268 |
Sensor |
1/2.7〞（CMOS 1/2.7 inch) |
Pixel Size |
3.0μm x 3.0μm |
Max Resolution |
1920*1080 |
Output Format |
MJPG\YUY2 |
Speed |
MJPG 20-30fps (Max lock 30fps) |
Resolution & Frame Rate |
1920(H) x 1080 (V) : MJPEG 30fps / YUY2 5fps
1280(H) x 720 (V) : MJPEG 30fps / YUY2 10fps
640(H) x 480 (V) : MJPEG 30fps / YUY2 30fps
|
SNR |
41dB |
Hardware |
Technical grade 2 Megapixel |
Voltage |
5V |
Electricity |
80mA |
Power |
1W |
| Mini Illumination | 0.003Lux |
| Dynamic Range | 86dB |
Time exposure |
35ms |
Interface |
USB2.0 |
Agreement |
UVC OTG Communication Protocol |
Storage Temperature |
-20～70℃ |
Working Temperature |
-10～60℃ |
Focus |
Manual Focus |
Lens Fov |
Optional |
Wave band |
400-650nm （ray of light） |
Image Processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above /Linux
/Mac OS/Raspberry Pi
|
Filter band customization introduction | |
Band customization |
Band characteristics introduction |
High definition |
Visible light, image color, no color (delivery default this effect) |
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
other bands |
405、520、540、580、730… |
Default HD filter, need other bands of filters please contact us
| |
