Well used for High-speed mobile capture, Industrial inspection, Face Recognition,
Machine Vision,Video Conference,Industrial Control,AI Recognition,
Medical Equipment,Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.

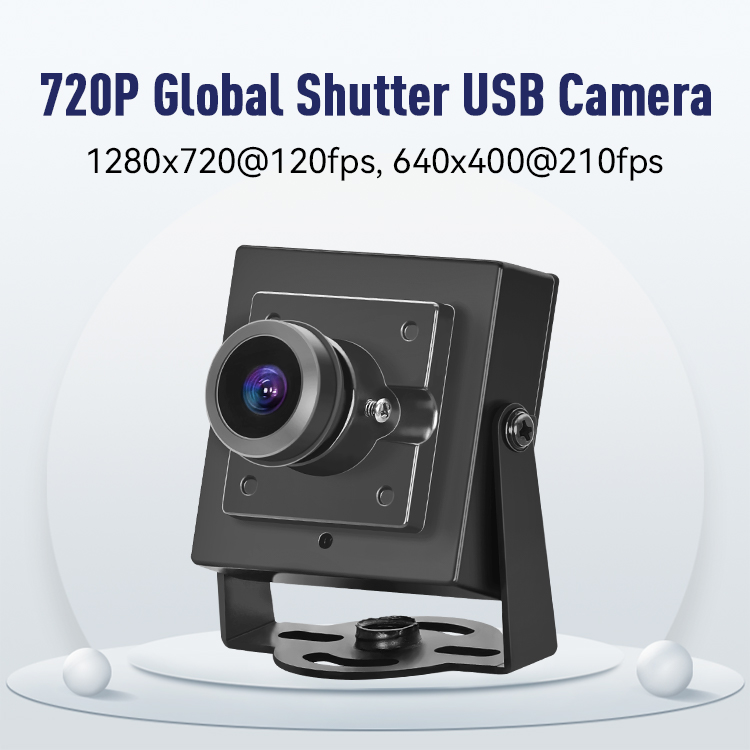

1MP 120fps/210fps Global Shutter USB Camera
Product specification book | |
Model |
3200_720P_OV9281 (Black & White Global shutter ) |
Sensor |
1/4〞（CMOS 1/4 inch) |
Pixel Size |
3.0μm x 3.0μm |
Output Format |
MJPG\YUY2 |
Speed |
120fps (Up to 210fps ) |
Resolution & Frame Rate |
1280*800 MJPEG@120fps; YUY2@5fps
1280*720 MJPEG@120fps; YUY2@10fps
640*400 MJPEG@210fps; YUY2@30fps
320*240 MJPEG@210fps; YUY2@30fps
|
SNR |
38dB |
Hardware |
Technical grade 1 megapixel HD 720P |
Voltage |
1V |
Electricity |
100mA |
Power |
1W |
Max resolution |
640*400/1280*720/1280*800 |
Low-light |
0.01Lux |
| Dynamic Range | 72dB |
Time exposure |
35ms |
Interface |
USB2.0 Free drive |
Agreement |
UVC OTG communication protocol |
Storage Temperature |
-20℃ to 70℃ |
Working Temperature |
-10℃ to 60℃ |
Focus |
Manual Focus |
Lens Fov |
15°20°30°45°70°90°130°150°180°220° choose |
Wave band |
400-650nm （ray of light） |
image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above/Linux/MAC OS |
place of origin |
ShenZhen China |
Filter band customization introduction | |
Band customization |
Band characteristics introduction |
High definition |
Visible light, image color, no color (delivery default this effect) |
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
other bands |
405、520、540、580、730… |
Default HD filter, need other bands of filters please contact us | |
