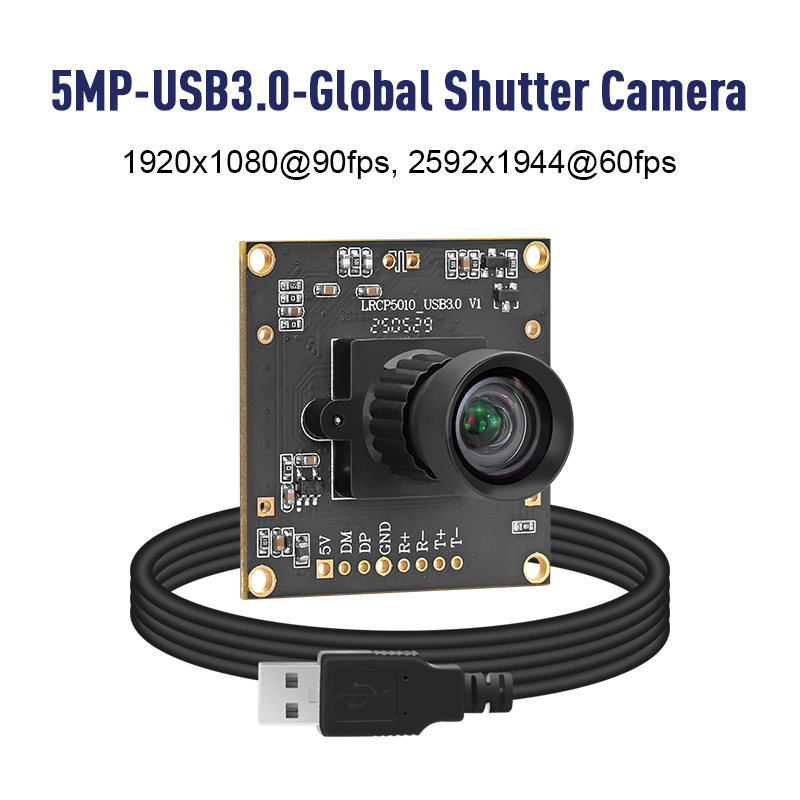

5MP Global Shutter USB3.0 Camera High Speed 60fps/90fps with Industrial Inspection/Mobile Snapshot/Machine Vision

* Lens: Optional

* Sensor: CMOS 1/2.5"

* Resolution & Frame Rate：2592*1944@60fps MJPG；1920*1080@90fps MJPG
* Compression Format: YUY2/MJPEG

* Connecting Port Type : High speed USB3.0 interface

* Board Size: 38x38mm

* Customized Support: OEM, ODM

Well used for Industrial inspection, Face Recognition,Machine Vision,

Video Conference,Industrial Control,AI Recognition,Gesture recognition,

Medical Equipment,Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.

5MP Global Shutter USB3.0 Camera High Speed 60fps/90fps

Product specification book
Model	5MP_OG05B10_USB3.0（Color Global Shutter）
Sensor	1/2.5〞（CMOS 1/2.5 inch)
Pixel Size	2.2μm x 2.2μm
Max Resolution	2592*1944
Output Format	MJPG\YUY2
Speed	MJPG：60-90fps
Resolution & Frame Rate	2592x1944: MJPG@60fps / YUY2@25fps 1900x1900: MJPG@60fps / YUY2@30fps 2048x1538: MJPG@60fps / YUY2@30fps 1920x1080: MJPG@90fps / YUY2@60fps 1280x720: MJPG@90fps / YUY2@60fps 640x480: MJPG@90fps / YUY2@60fps
SNR	39dB
Hardware	Technical grade 5 Megapixel
Voltage	5V
Electricity	90mA
Power	1W
Mini Illumination	0.01Lux
Dynamic Range	71dB
Time exposure	20ms
Interface	USB3.0
Agreement	UVC OTG communication protocol
Storage Temperature	-20℃ to 70℃
Working Temperature	-10℃ to 60℃
Focus	Manual Focus
PCBA size	38*38mm
Lens Fov	Optional
Wave band	400-650nm （ray of light）
image processing	Automatic exposure / Automatic white balance
System	XP/Win7/Win8/Win10/Android4.0 or above /linux/Mac OS

*Global shutter camera: All image pixels are synchronously exposed, eliminating distortion

or blurring, enabling the capture of sharp images even in high-speed motion scenarios.

Filter band customization introduction
Band customization	Band characteristics introduction
High definition	Visible light, image color, no color (delivery default this effect)
Infrared 850nm	Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased
Infrared 940nm	Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased
Narrow band 850nm	Wavelength 820-880nm, image will be biased (more black)
Narrow band 940nm	Wavelength 910-970nm, image will be dark (close to black and white)
Narrow band 980nm	Wavelength 960-1000nm, image will be biased (darker, black and white)
Narrow band 1064nm	Wavelength 1040-1080nm, image darker (darker, more black and white)
Narrow band 1310nm	Wavelength 1280-1335nm, image darker (darker, more black and white)
Narrow band 1450nm	Wavelength 1420-1480nm, image darker (darker, more black and white)
Narrow band 1550nm	Wavelength 1520-1580nm, image darker (darker, more black and white)
Near infrared 700-1100nm	Wavelength 700-1100nm, image will be skewed (Partial red)
other bands	405、520、540、580、730…
Default HD filter, need other bands of filters please contact us
