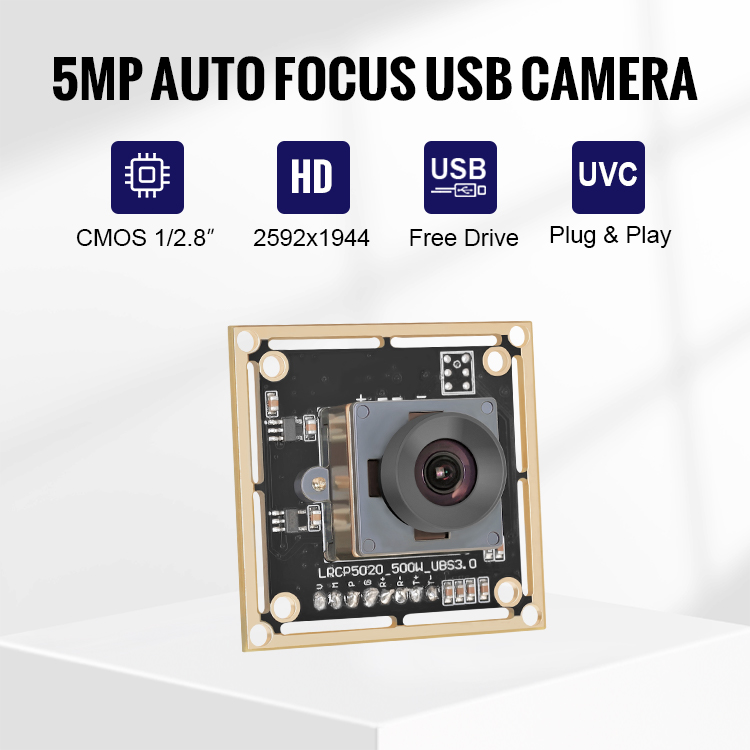

* Lens: Optional
* Sensor:CMOS 1/2.8” IMX335
* Output Format:MJPEG/YUY2
* Max. Resolution: 2592*1944@25fps
* High Frame Rate: MJPEG /YUY2 1080P@60fps
* Output Interface: High Speed USB3.0 interface
* Module size: 38*38mm
* Customized support: OEM, ODM
Well used for Industrial inspection, Face Recognition,Machine Vision,
Video Conference,Industrial Control,AI Recognition,Medical Equipment,
Scanning Recognition,ATM,Robot,Auto,Drone.... and so on.
Product specification book | |
Model |
PCBA_5MP_imx335_AF |
Sensor |
1/2.8〞（CMOS 1/2.8 inch) |
Pixel Size |
2.0μm x 2.0μm |
Max Resolution |
2592*1944 |
Output Format |
MJPG\YUY2 |
Speed |
60fps ( or 30fps ) |
Resolution & Frame Rate |
2592*1944: MJPG@25spf; YUY2@25fps
2048*1536: MJPG@25spf; YUY2@25fps 1920*1080: MJPG@60spf; YUY2@60fps
1280*720: MJPG@60spf; YUY2@60fps
640*480: MJPG@60spf; YUY2@60fps
|
SNR |
39dB |
Hardware |
Technical grade 5 Megapixel |
Voltage |
5V |
Electricity |
100mA |
Power |
1W |
Mini Illumination |
0.01Lux |
Dynamic Range |
72dB |
Time Exposure |
20ms |
Interface |
High speed USB3.0 interface |
Agreement |
UVC OTG communication protocol |
Storage Temperature |
-20℃ to 70℃ |
Working Temperature |
-10℃ to 60℃ |
Focus |
Auto Focus |

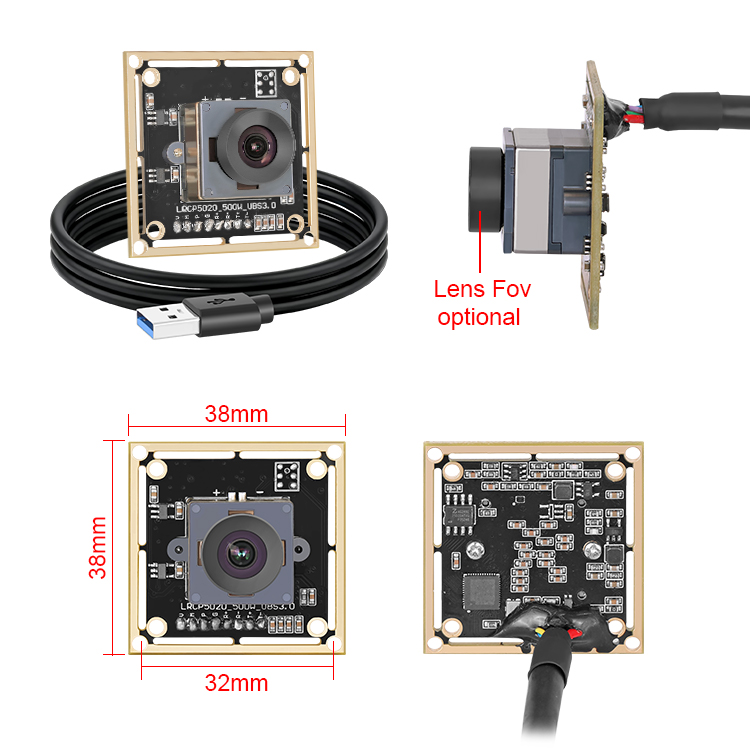

PCBA size |
38*38mm |
Lens Fov |
Optional |
Wave band |
400-650nm （ray of light） |
image processing |
Automatic exposure / Automatic white balance |
System |
XP/Win7/Win8/Win10/Android4.0 or above/linux/Mac OS |
place of origin |
ShenZhen China |
Filter band customization introduction | |
Band customization |
Band characteristics introduction |
High definition |
Visible light, image color, no color (delivery default this effect) |
Infrared 850nm |
Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased |
Infrared 940nm |
Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased |
Narrow band 850nm |
Wavelength 820-880nm, image will be biased (more black) |
Narrow band 940nm |
Wavelength 910-970nm, image will be dark (close to black and white) |
Narrow band 980nm |
Wavelength 960-1000nm, image will be biased (darker, black and white) |
Narrow band 1064nm |
Wavelength 1040-1080nm, image darker (darker, more black and white) |
Narrow band 1310nm |
Wavelength 1280-1335nm, image darker (darker, more black and white) |
Narrow band 1450nm |
Wavelength 1420-1480nm, image darker (darker, more black and white) |
Narrow band 1550nm |
Wavelength 1520-1580nm, image darker (darker, more black and white) |
Near infrared 700-1100nm |
Wavelength 700-1100nm, image will be skewed (Partial red) |
other bands |
405、520、540、580、730… |
Default HD filter, need other bands of filters please contact us | |
